Data Types — from ST and NM to XPN, XAD, CX, and CWE

Fields are typed claims

The text between two field separators is not merely a string. Each field position has a declared data type that says how to interpret its content. A type may be primitive, such as a number, or composite, such as an identifier plus the authority that issued it. The v2 data-type chapter defines the ordered components and rules that make these values interoperable ¹.

Type, field location, table binding, and profile work together. The text F could mean female in an administrative-sex field, final in a result-status field, or something local elsewhere. Never map a value from characters alone.

Primitive types still carry rules

Dates and times deserve special care. A partial precision such as year and month is not the first day of that month. A timestamp without an offset should not be silently labeled UTC. Define time-zone policy, daylight-saving handling, and whether the source can send fractional seconds.

Composite types preserve context

Composite types use ^ between components and & within subcomponents. Empty component positions remain meaningful:

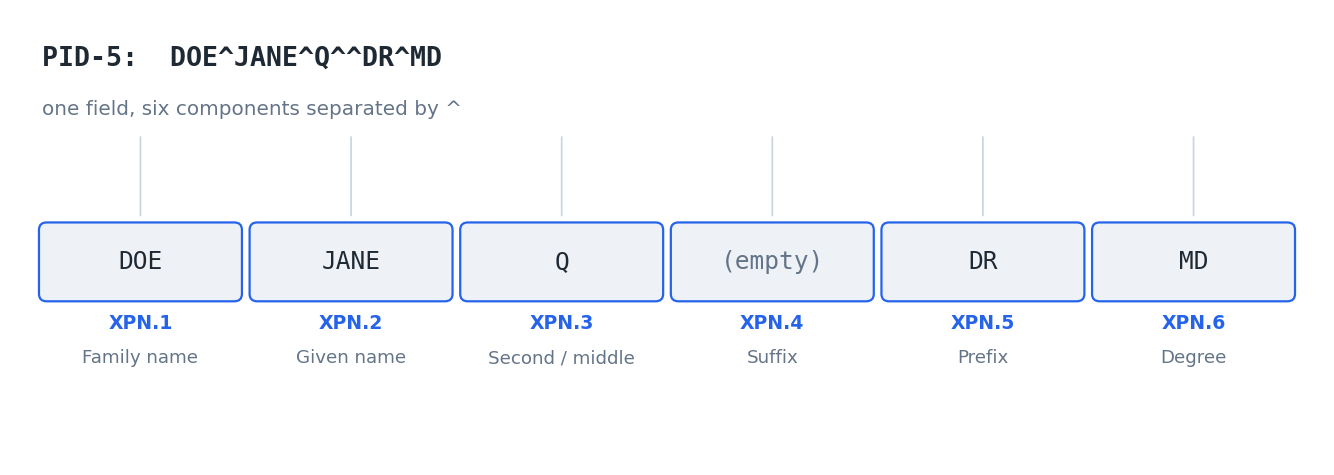

DOE^JANE^Q^^DR^MD

The double caret before DR preserves an empty suffix so that prefix and degree remain in their declared positions.

XPN: a person name is not one label

XPN can carry family name, given name, additional names, suffix, prefix, degree, name type, validity dates, professional suffix, and more depending on version. Names may repeat for legal, alias, maiden, display, or other uses. A receiver that concatenates one preferred string and discards repetitions may lose information needed for matching or respectful display.

Avoid treating names as identifiers. Spelling, order, punctuation, diacritics, and use can change. Preserve components, repetition type, and original text where the contract requires them.

CX: an identifier needs a namespace

A CX value can contain the identifier, check digit information, assigning authority, identifier type, assigning facility, effective dates, and jurisdiction. For example:

100711^^^HOSP^MR

means identifier 100711, assigned under HOSP, with identifier type MR. The string 100711 by itself is not globally meaningful. Another hospital can issue the same number to a different person. The assigning authority is part of the identity claim, not optional decoration.

For matching and deduplication, retain at least the identifier value, authority, type, status or validity where available, and provenance. Never merge patients because two naked numeric strings match.

XCN and XAD: people and addresses in roles

XCN combines a person identifier with name components and is often used for providers. Its role comes from the field containing it: an ordering provider, attending provider, and verifier are not interchangeable simply because all use XCN.

XAD structures an address into street, city, state, postal code, country, address type, validity, and other components. Postal normalization may help matching, but preserve the supplied value and type. An old address, mailing address, and temporary address can all be valid repetitions with different uses.

Coded values: code, text, and system

CWE is a common coded data type. Its core tuple is:

identifier ^ display text ^ name of coding system

For example, a local test code might appear as GLU^Glucose^L. The L says the code belongs to a local system; it does not become LOINC because the display text resembles a LOINC term. The standard permits alternate coding components so a sender can carry both local and standard representations under defined rules ¹.

CNE is coded with no exceptions: when populated, the identifier is expected to come from the specified non-extendable value set. CWE allows more flexibility, including exceptions under its rules. Choosing between them expresses a conformance expectation, not a formatting preference.

Three recurring errors are:

• mapping on display text while ignoring the coding system;
• sending a local code with a standard-system label;
• replacing an unknown code with a plausible standard code without review.

Prefer an explicit unmapped or exception workflow over a confident but wrong translation.

Repetition is not composition

The repetition separator ~ means “another value of this field.” The component separator ^ means “another part of this one value.” Compare:

111^^^HOSP^MR~999-88-7777^^^USSSA^SS

This is two CX identifiers, each with its own authority and type. Flattening repetitions into one component list destroys the grouping. Mapping code should iterate repetitions first, then interpret each repetition by its declared data type.

Absent, empty, null, and unknown

An omitted optional field, an empty field, an explicit null instruction, and a coded “unknown” are different states. The exact update semantics must come from the profile and interface agreement. A safe receiver does not automatically turn every blank into “erase the stored value,” nor every unknown into missing data.

Record update behavior field by field:

Build type-focused tests

For each consequential field, test:

• minimum, maximum, and invalid length;
• empty and explicit-null behavior;
• multiple repetitions in different orders;
• missing or unfamiliar assigning authority;
• invalid date precision, offset, and daylight-saving boundary;
• code with missing, local, or incorrect coding system;
• Unicode names, punctuation, prefixes, suffixes, and multiple name types;
• a valid base-standard value that the local profile forbids.

Practice

Take PID-3, PID-5, PID-11, and one coded clinical field. For each, write the declared type, the components you will retain, allowed repetitions, terminology or authority rules, null behavior, and one dangerous lossy transformation. Then create a round-trip test: parse the field, store it in your internal model, serialize it again, and compare the semantic structure—not only the printed string.
