Kiln Samples and Safe Drying Rates

Why samples

A moisture-content schedule needs to know the moisture content of the charge as it dries. Meters can’t read reliably above fiber saturation, and a kiln is full of wet wood. So operators use kiln samples: short, representative boards whose weight is tracked through the run ¹.

Making kiln samples

From the FPL hardwood manual:

1. Choose boards that represent both the wettest, slowest-drying wood (thick, heartwood, quartersawn) and the driest, fastest (thin, flatsawn, sapwood). Clear, sound wood, no knots, bark, or decay.
2. Cut a sample about 30 inches long, well in from the board’s end, and cut a moisture section about 1 inch long along the grain from each end of the sample.
3. Weigh the moisture sections immediately, very precisely, then oven-dry them to find their moisture content.
4. End-coat the sample right away (asphalt roofing compound works) and weigh it to 0.01 lb. Write the weight and date on it.
5. Put the sample back in the load, in a pocket where it gets the same air as the lumber.

The arithmetic

From each moisture section, MC = (original weight ÷ oven-dry weight − 1) × 100. The FPL manual’s example: sections at 98.55 g and 86.92 g green, 59.20 g and 55.02 g oven-dry, give 66.47 and 57.98 percent, which average 62.22 percent ¹.

Assume the sample’s MC at cutting equals that average. Then its estimated oven-dry weight is:

oven-dry weight = weight when cut ÷ (1 + MC/100)

A sample weighing 12.40 lb at 62.22 percent has an oven-dry weight of 12.40 ÷ 1.6222 = 7.64 lb. From then on, every time you weigh it:

current MC = (current weight ÷ oven-dry weight − 1) × 100

At 10.20 lb it’s at 33.4 percent; at 8.25 lb, 7.9 percent. Weigh samples daily, at the same time. Change schedule steps based on the wettest samples, so the slowest wood isn’t damaged by conditions it isn’t ready for; equalize based on the driest.

The same method works for air drying and solar kilns: a single end-coated sample board, weighed every week or two, tells you more than any number of guesses.

Safe drying rates

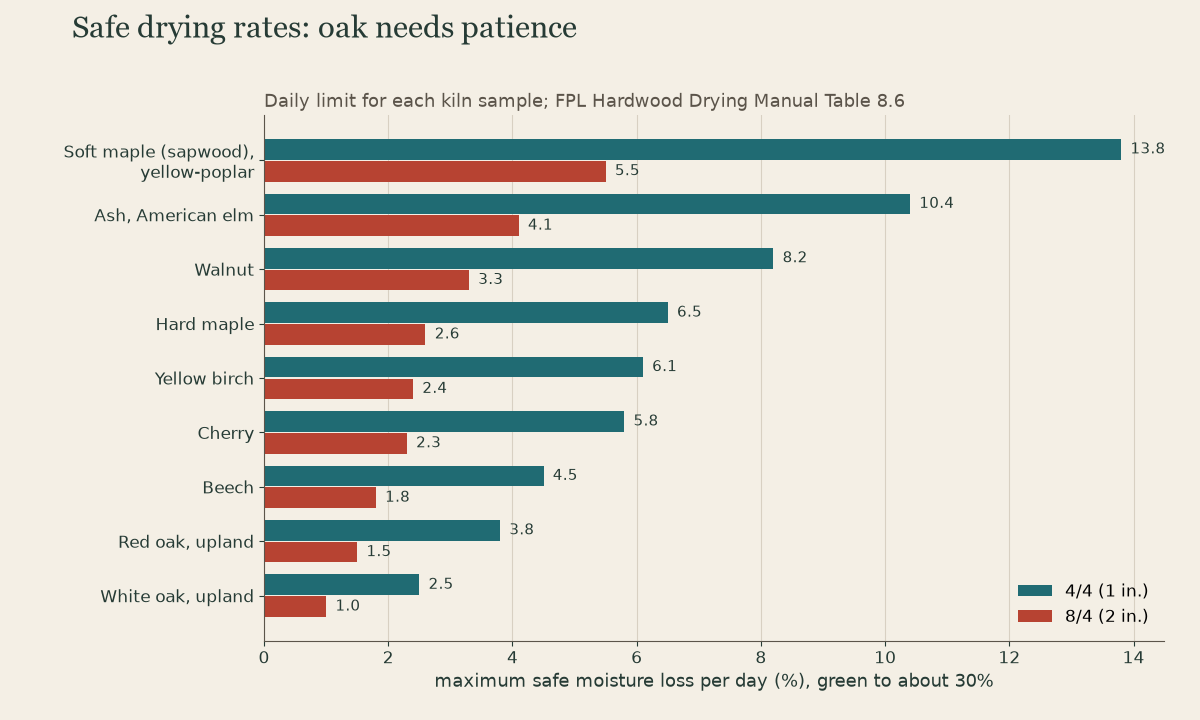

Weighing daily gives you not just moisture content but drying rate: percent moisture lost per day. For every species and thickness there’s a rate that, if not exceeded, produces sound lumber. The FPL’s table ¹:

Percent moisture-content loss per day.

Three rules from the manual for using it:

• These are daily limits for each sample, not averages. Losing 8 percent today and 2 tomorrow is not “5 per day”; the 8 percent day already did the damage.
• They apply to the wet stages (I and II), from green down to about 30 percent, when surface checks and internal checks form. Below that, wood can dry faster safely.
• Going far below the safe rate isn’t free either: it raises stain risk and cost.

Notice how much the numbers vary. White oak 8/4 should lose only 1 percent a day; soft maple 4/4 can lose nearly 14. That’s why oak takes weeks in a kiln and why soft maple must be dried fast to stay white. And why air-drying red oak in a dry, windy Wisconsin May can exceed its safe rate on an exposed pile: an open yard has no humidity control at all.

What to take from this

Kiln samples, 30 inches long with 1-inch moisture sections cut from each end, let you estimate oven-dry weight and track moisture content by weighing: oven-dry = weight ÷ (1 + MC), then MC = (weight ÷ oven-dry − 1) × 100. Weigh daily, step the schedule by the wettest samples, and keep each sample’s daily loss under the FPL safe rate, from 13.8 percent for soft maple to 2.5 for 4/4 white oak.
